扭矩扳手检定仪是检定扭矩扳子、据矩起子的专用设备，主要用于检测各种定力式扭力扳手，数显式扭力板手、预置式扭力板手、等的仪器和产品。普遍应用于电气制造、机械制造、汽车轻工和科研和检测行业。
Torque wrench calibrator is a special equipment for calibrating torque wrenches and torque drivers. It is mainly used to detect various fixed torque wrenches, digital torque wrenches, preset torque wrenches, and other instruments and products. It is widely used in electrical manufacturing, machinery manufacturing, automotive light industry and professional scientific research and testing industries.
扭矩扳手检定仪功用特性：
Functional characteristics of torque wrench calibrator:
1、高精度、高分辨率、采样速度快、全屏显现，7寸触摸屏显现。
1. High precision, high resolution, fast sampling speed, full screen display, 7-inch touch screen display.
2、采用高精度扭矩传感器，具有扭矩方向显现。
2. Adopt high-precision torque sensor, with torque direction display.
3、上下限值的设定，红绿指示灯及峰鸣器声光报警。
3. The setting of upper and lower limits, red and green indicators and audible and visual alarm of buzzer.
4、三种单位相互转换，可供选择（N·m、kgf·cm、Ib·in）。
4. The three units are interchangeable and can be selected (n · m, KGF · cm, IB · in).
5、实时、峰值、自动峰值三种形式可随意切换。
5. Real time, peak and automatic peak can be switched at will.
6、采用仪表显现、曲线显现、曲线缩放功用、全触摸屏显现。
6. It adopts instrument display, curve display, curve zoom function and full touch screen display.
7、峰值坚持、自动解除功用、解除时间自在设定。
7. Peak persistence, automatic release function and release time can be set freely.
8、存储大量测试数据。
8. Store a large amount of test data.
9、无操作自动关机功用，时间可自在设定。
9. Automatic shutdown function without operation, and the time can be set freely.
扭矩扳手检定仪运用办法:
Application method of torque wrench calibrator:
1、在运用扭矩扳手检定仪之前，先检查仪器电量能否充足，若电量缺乏,请先充电（充电时也可运用）。
1. Before using the torque wrench calibrator, check whether the power of the instrument is sufficient. If the power is insufficient, please charge it first (it can also be used during charging).
2、将被检物的四方测头放入该测试仪的承力四方孔内，同时运用的被检物另一端的手柄在高度调理块上方（若长度不够时，可自在调理整套加载安装）。
2. Put the square probe of the tested object into the bearing square hole of the tester, and at the same time, the handle at the other end of the tested object is above the height conditioning block (if the length is not enough, the whole set of conditioning can be loaded and installed freely).
3、翻开电源开关，显现的扭矩值为零，假如不为零，则按清零键，将扭矩值清零。
3. Turn on the power switch, and the displayed torque value is zero. If it is not zero, press the reset key to reset the torque value.
4、测试前，需设置好上下限值、很小存储值、很小峰值坚持值、自动峰值时间、自动关机时间、重力加速度等。
4. Before the test, it is necessary to set the upper and lower limit values, very small storage values, very small peak persistence values, automatic peak time, automatic shutdown time, gravity acceleration, etc.
1)上限值设定：用户设定上限值，依据需求自在设定，到达上限值即自动声光提示，上限值不高于满量程。
1) Upper limit value setting: the user sets the upper limit value and sets it freely according to the demand. When the upper limit value is reached, it will be prompted automatically by sound and light, and the upper limit value is not higher than the full range.
2)下限值设定：用户设定下限值，依据需求自在设定，到达下限值即自动灯光提示，下限值不得高于设定的上限值。
2) Lower limit value setting: the user sets the lower limit value and sets it freely according to needs. When the lower limit value is reached, the automatic light prompt is given, and the lower limit value shall not be higher than the set upper limit value.
3)很小存储值设定：用户依据存储需求设定很小存储值，小于该值的数据将不被贮存。
3) Very small storage value setting: the user sets a very small storage value according to the storage demand, and the data less than this value will not be stored.
4)很小峰值坚持值设定：用户依据峰值，自动峰值丈量需求自在设定，小于该值的数据不被峰值保管。
4) Small peak value setting: the user can set the automatic peak measurement demand according to the peak value, and the data less than this value will not be kept by the peak value.
5)自动峰值时间设定：用户依据自动峰值丈量状态下峰值需求坚持的时间从1秒～99秒自在设定。
5) Automatic peak time setting: the user can freely set the time from 1 second to 99 seconds according to the peak demand under the automatic peak measurement state.
6)自动关机时间设定：无操作状态下，自动关机时间从0分钟～9分钟可自在设定（当设置为0分钟则表示为解除自动关机）。
6) Automatic shutdown time setting: when there is no operation, the automatic shutdown time can be freely set from 0 minutes to 9 minutes (when it is set to 0 minutes, it means that the automatic shutdown is cancelled).
7)重力加速度设定：用户可依据本地域的位置设定重力加速度值。
7) Gravity acceleration setting: the user can set the gravity acceleration value according to the position of the local domain.
8)恢复初始设置：用户操作不当或屡次更改数据呈现紊乱,能够经过此项设置来把1～7的数据恢复到出厂状态。
8) Restore the initial setting: if the user operates improperly or changes the data repeatedly, the data of 1 ~ 7 can be restored to the factory state through this setting.
以上就是为大家介绍的有关

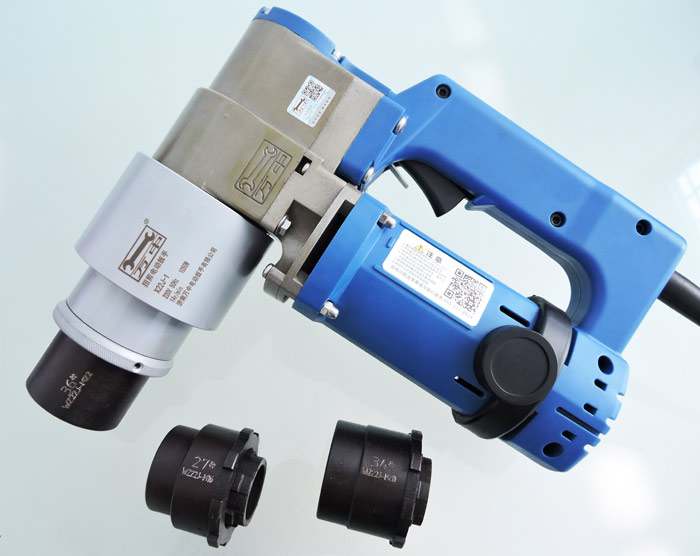

扭剪型电动扳手的详细的介绍,希望对您有所帮助.如果您有什么疑问的话,欢迎联系我们.我们将以的态度,为您提供服务.
The above is a detailed introduction about the torsion shear electric wrench, which I hope will be helpful to you If you have any questions, please contact us We will provide you with professional service
