Jinan Wanzhong high power torsion shear wrench

大功率扭剪扳手，X30J-2扭剪扳手适用于m16-30六种扭剪螺栓，钢结构高强螺栓扭剪螺栓专用扳手，整机质保两年，套筒终生保用（套筒坏了换新）

High power torsion shear wrench, x30j-2 torsion shear wrench is applicable to six kinds of M16-30 torsion shear bolts, and special wrench for steel structure high-strength bolts torsion shear bolts. The whole machine is guaranteed for two years, and the socket is guaranteed for life (the socket is replaced free of charge if it is broken)

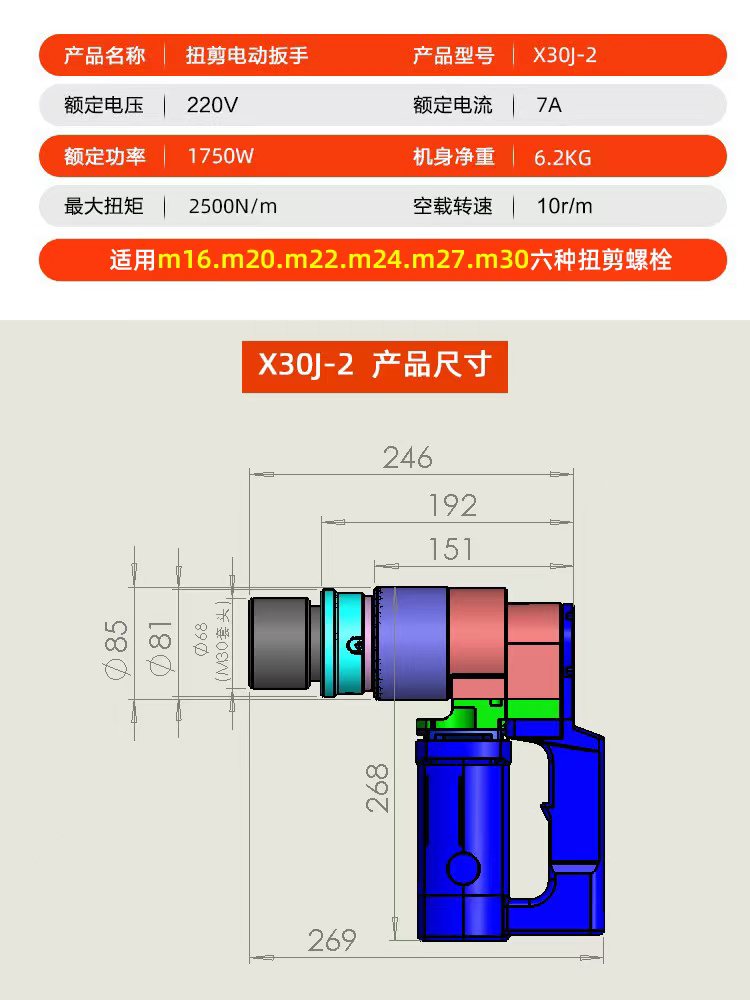

X30J-2扭剪扳手

X30j-2 torsion shear wrench

功率：1750W

Power: 1750W

电压：220V

Voltage: 220V

转速：10r

Speed: 10R

重量：6.3KG

Weight: 6.3kg

电动扭剪扳手是一种终紧扭剪型高强度螺栓的工具，一般有电动扭剪扳手和手动扭剪扳手，其中电动扭剪扳手比较常见，扭剪型螺栓目前广泛用于建筑钢结构安装行业，也有少部分用于汽车组装，下面就给大家具体的介绍一下电动扭剪扳手工作原理。

Electric torsional shear wrench is a tool for final tightening of torsional shear type high-strength bolts. Generally, there are electric torsional shear wrench and manual torsional shear wrench, of which electric torsional shear wrench is more common. Torsional shear bolts are widely used in the construction steel structure installation industry, and a small part of them are used in automobile assembly. Here is a specific introduction to the working principle of electric torsional shear wrench.

电动扭剪扳手的应用：扭剪型高强螺栓的初紧可使用冲击电动扳手或定扭矩扳手,而终紧需要使用扭剪扳手，所以扭剪扳手是专门终紧扭剪型高强螺栓的。

Application of electric torsional shear wrench: impact electric wrench or constant torque wrench can be used for initial tightening of torsional shear high-strength bolts, while torsional shear wrench is required for final tightening, so torsional shear wrench is specially used for final tightening of torsional shear high-strength bolts.

电动扭剪扳手的工作原理：电动扭剪扭扳手配有内外两个套管，外套筒扭螺母，对螺栓施加扭矩，内套筒方向扭梅花头，两个扭矩大小相等，方向相反，尾部梅花头拧掉，然后抽出扳手扣动扳机将梅花头弹出，即结束工作。

Working principle of the electric torsional shear wrench: the electric torsional shear wrench is equipped with two inner and outer sleeves, and the outer sleeve is used to twist the nut. Torque is applied to the bolt, and the inner sleeve is used to twist the plum blossom head. The two torques are equal in size and opposite in direction, until the tail plum blossom head is screwed off, and then the wrench is pulled out to pull the trigger to eject the plum blossom head, which is the end of the work.

电动扭剪扳手相对来说操作方便，降低工人的劳动强度，提高了工作效率，现在市场上电动扳手厂家众多，选择一家好的电动扳手厂家十分重要。

The electric torsional shear wrench is relatively easy to operate, reduces the labor intensity of workers and improves the work efficiency. Now there are many electric wrench manufacturers in the market. It is very important to choose a good electric wrench manufacturer.
