Complete model of torsion shear wrench

扭剪扳手型号有X20J、X22J、X24J、X27J、X30J等5种扭剪扳手

There are five types of torsional shear wrenches, including x20j, x22j, x24j, x27j and x30j

X20J扳手适用于M16；M20两种扭剪螺栓

X20j wrench is applicable to M16; M20 two kinds of torsion shear bolts

X22J扳手适用于M20；M22两种扭剪螺栓

X22j wrench is applicable to M20; M22 two kinds of torsion shear bolts

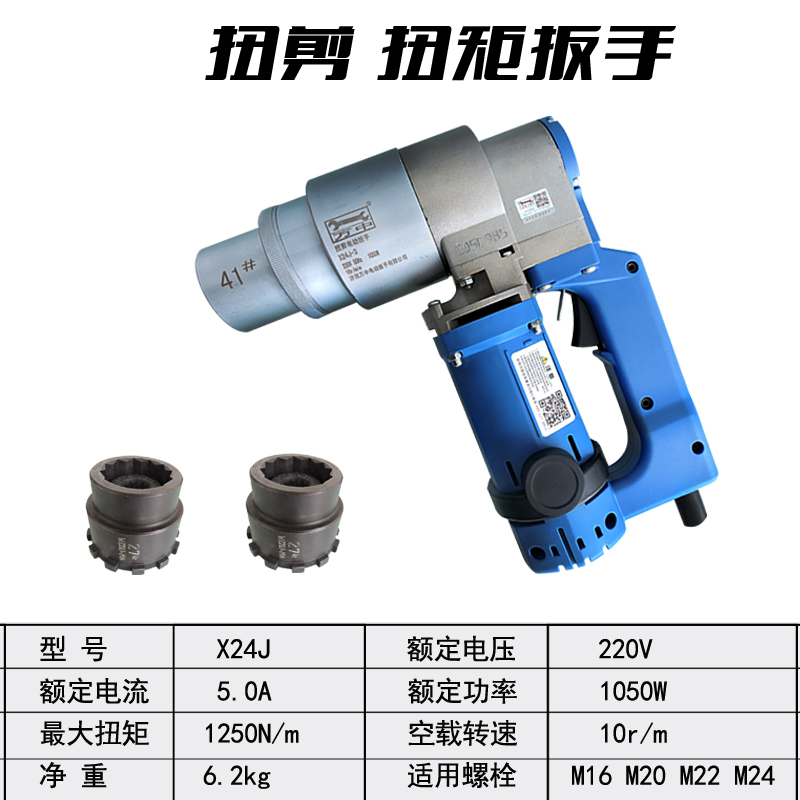

X24J扳手适用于M16；M20、M22、M24四种扭剪螺栓

X24j wrench is applicable to M16; M20, M22 and M24 torsional shear bolts

X27J扳手适用于M24；M27两种扭剪螺栓

X27j wrench is suitable for M24; M27 two kinds of torsion shear bolts

X30J扳手适用于M16；M20、M22、M24、M27、M30六种扭剪螺栓

X30j wrench is applicable to M16; Six kinds of torsion shear bolts M20, M22, M24, M27 and M30

其中X24J扳手和X30J扳手比较常用，并且适用的螺栓比较多，可以一机多用。

It is more suitable than the common bolt wrench of the 24x30j, and it is more suitable than the common bolt wrench of the 24x30j.

定扭矩电动扳手是组装螺钉和螺栓的机械化施工工具，具有自动控制扭矩的功能，在对销焊结构的桥梁架设、厂房、塔架和化工、发电设备的安装、大型机械、起重设备和车辆的组装工作、螺钉紧固部件的扭矩和轴向张力有严格要求的情况下也广泛使用，那么，下面一起了解下定扭矩电动扳手的使用注意事项吧!

Fixed torque electric wrench is a mechanized construction tool for assembling screws and bolts, which has the function of automatic torque control. It is also widely used when there are strict requirements for bridge erection of pin welded structure, installation of plant, tower and chemical industry, power generation equipment, assembly of large machinery, lifting equipment and vehicles, torque and axial tension of screw fastening parts, Now let's learn about the precautions for the use of electric wrench with fixed torque!

定扭矩电动扳手由主机和控制器两部分组成，主机采用电机和减速机构，结构新颖、体积小、重量轻、更加可靠、静扭结构，运行平稳、无振动、无冲击、噪音小、操作可靠。

The constant torque electric wrench is composed of a host and a controller. The host adopts a motor and a reduction mechanism, which has novel structure, small volume, light weight, more reliable, static torsion structure, stable operation, no vibration, no impact, low noise and reliable operation.

一、定扭矩电动扳手的紧固操作

1、 Tightening operation of constant torque electric wrench

1、安装反力支架，拧紧螺钉，移动主体，使方销孔和反力支架孔相对应，放入扳手套筒，插入销，用橡胶环固定。

1. Install the reaction support, tighten the screws, move the main body so that the square pin hole corresponds to the reaction support hole, put in the wrench socket, insert the pin and fix it with a rubber ring.

2、将控制器的扭矩旋钮设为所需的扭矩值，将主体的正反开关置于正转位置，将扳手套筒嵌入螺纹接头的六方。

2. Set the torque knob of the controller to the required torque value, place the forward and reverse switch of the main body in the forward rotation position, and insert the wrench socket into the hexagon of the threaded joint.

3、一按电源开关，扳手就会启动。 反作用力支架的力臂牢牢地碰到支架后，螺栓就开始拧紧。 螺栓的扭矩达到规定的扭矩后，扳手自动停止，紧固完毕，松开电源开关，进行下一个螺栓的紧固作业。

3. Press the power switch and the wrench will start. After the force arm of the reaction support firmly touches the support, the bolt begins to tighten. When the torque of the bolt reaches the specified torque, the wrench will automatically stop. After tightening, loosen the power switch and tighten the next bolt.

4、定扭矩电动扳手自动停止后，通过反力托架的弹性变形力，将托架的力臂自动从支点上拆下，拆下扳手。 杠杆臂无法从支点脱落时，转动正反开关，点击电源开关扳手即可拆下。

4. After the constant torque electric wrench stops automatically, the force arm of the bracket is automatically removed from the fulcrum through the elastic deformation force of the reaction bracket, and the wrench is removed. When the lever arm cannot fall off from the fulcrum, turn the positive and negative switch and click the power switch wrench to remove it.

以上就是为大家介绍的有关扭剪电动扳手的详细介绍,希望对您有所帮助.如果您有什么疑问的话,欢迎联系我们.我们将以的态度,为您提供服务

The above is the detailed introduction of the electric wrench for torsion and shear. I hope it will be helpful to you If you have any questions, please contact us We will provide you with professional service
