x30J 扳手更换套筒的步骤

来源:日期:2021-12-29 发布人:admin

更换套头步骤:

Steps for replacing insert:
1、把锁头按下
1. Press the lock
2、把锁套滑向机体一侧滑动底部
2. Slide the lock sleeve to one side of the machine body to the bottom
3、把撞针、大弹簧、小弹簧分别按图示装好

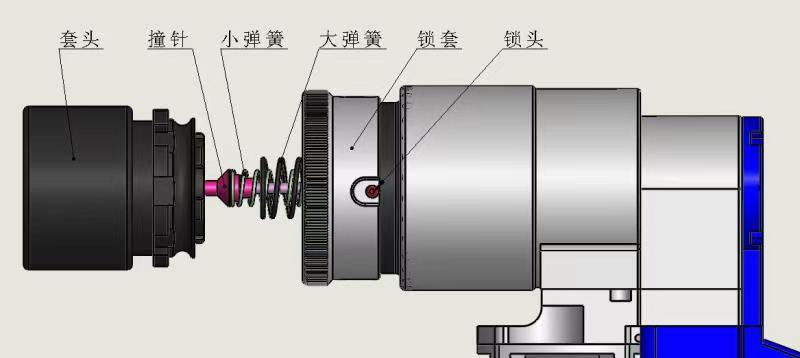

3. Install the striker, large spring and small spring as shown in the figure
电动扭矩扳手
4、把内套头与外套头分别与机器上的卡槽相对应并且卡入卡槽
4. The inner sleeve head and the outer sleeve head correspond to the clamping groove on the machine and are clamped into the clamping groove
5、向远离机器方向推动锁套锁头卡入锁套的小孔使锁套固定
5. Push the lock sleeve away from the machine until the lock head snaps into the small hole of the lock sleeve to fix the lock sleeve
6、套头更换完成可以使用
6. The socket can be used after replacement
