扭剪扳手型号及技术参数
Type and technical parameters of torsion shear wrench
FLP电动力矩扳手:我公司吸收国内外技术和技术,采用相关零部件替代进口产品。扭矩范围广,机电性能优越,体积小,重量轻,锁紧速度快,扭矩调节快捷方便,达到设定扭矩时停止工作,比较大扭矩可达3500Nm,可拧紧m20-m36的高强螺栓螺母。使用静态扭转结构,不影响设计和制造、整体杠杆,减轻操作人员劳动强度和工作电压220 v,集成的杠杆,装卸六角螺栓或螺母,可以自动控制转矩的大小,当工作在紧舒适的手在火灾中,水力发电厂,石油,煤和钢结构、铁路、桥梁建筑、大型设备安装、汽车组装厂,石化管道,压力容器行业等。特别适用于对预紧力要求严格、螺栓解锁次数较多或解锁次数较多的场合。
FLP Electric Torque Spanner: Our company absorbs advanced technology and technology at home and abroad, and uses related parts to replace imported products. Wide range of torque, superior mechanical and electrical performance, small size, light weight, fast locking speed, quick and convenient adjustment of torque, stop working when setting torque, maximum torque up to 3500Nm, can tighten m20-m36 high-strength bolts and nuts. The use of static torsion structure does not affect the design and manufacture, the overall lever, reduces the operator's labor intensity and work voltage 220 V, integrated lever, loading and unloading hexagonal bolts or nuts, can automatically control the torque. When working in a tight and comfortable hand in fire, hydraulic power plants, oil, coal and steel structures, railways, bridges, large-scale equipment installation, automobile assembly plants, petrochemical pipelines, Pressure Vessel Industry, etc. It is especially suitable for situations where the pre-tightening force is strictly required, the number of bolt unlocking is more or the number of unlocking is more.

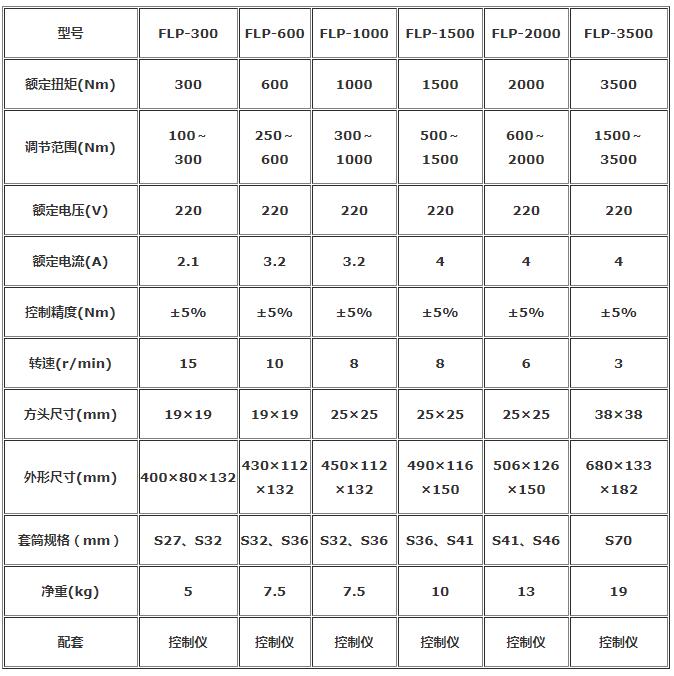

电动扭矩扳手技术参数:
Technical parameters of electric torque wrench:
P1B扭剪型电动扳手:本机是扭剪型螺栓拧紧作业的必备工具,当扳手到达一定扭矩时,即可从螺栓的V型切口处剪断螺栓梅花头局部,完成螺栓拧紧作业,普遍应用于钢构造桥梁、厂房、发电设备等设备的施工作业。
P1B twist-shear electric wrench: This machine is a necessary tool for twist-shear bolt tightening operation. When the wrench reaches a certain torque, it can cut the part of the bolt plum blossom head from the V-cut of the bolt to complete the bolt tightening operation. It is widely used in the construction of steel structure bridges, factory buildings, power generation equipment and other equipment.

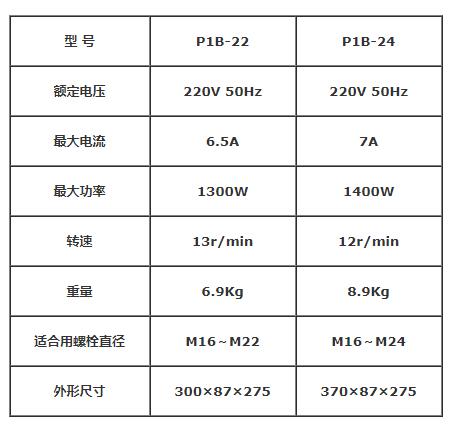

扭剪型电动扳手技术参数:
Technical parameters of Torsion-shear electric wrench:
FYK中空液压扳手、液压扭力扳手、液压力矩扳手:比较大限度的采用高强度轻金属,一体成型动力头,进步强度及寿命;较大的扭矩/重量比,双作用,高速,转角大,效率高,一只动力头可配合多种工作头运用,工作范围广,360度旋转软管接头使在狭小的空间内运用便当,绝不会呈现机构卡死,扭矩反复精度高达±3%,松开时不需其它工具,存贮箱维护扳手头防止损坏,浸水和纯净,运动部件少,经久耐用,维护便当。本扳手体积小,力矩大、重量轻、预紧精确。目前在法兰装置、汽轮机、隧道拙进机、球磨机、大型锅炉、地脚螺栓衔接预紧等产品装置中得到普遍应用。
FYK Hollow Hydraulic Spanner, Hydraulic Torque Spanner, Hydraulic Torque Spanner: Max use of high strength light metal, forming power head in one body, improve strength and life in an all-round way; Big torque/weight ratio, double-acting, high speed, large rotation angle, high efficiency, one power head can cooperate with a variety of working heads, wide range of work, 360 degree rotating hose joint makes it easy to use in narrow space. When the mechanism is never jammed, the repetitive accuracy of the torque is as high as (+3%). When loosened, no other tools are needed. The storage box maintains the wrench head to prevent damage, immersion and purity, less moving parts, durability and convenient maintenance. The wrench has small volume, large torque, light weight and accurate preloading. At present, it has been widely used in flange devices, steam turbines, tunnel entry machines, ball mills, large boilers, anchor bolt connection pre-tightening and other products.
特性:
Characteristic:
采用高强度轻金属制造,360×360度旋转接头,接近无油管设计
Made of high strength light metal, 360 * 360 degree rotary joint, close to tubeless design
一体成型动力头,进步运用寿命;一只动力头可配多种工作头运用,工作范围广
Integrative shaping power head, improve service life; One power head can be used with a variety of working heads, with a wide range of work.
容纳设计,平安性比较佳
Inclusion design, the best safety
轻、薄、短、小、扭力大,顺应各种“高难度”空间
Lightweight, thin, short, small, big torsion, adapt to all kinds of "difficult" space

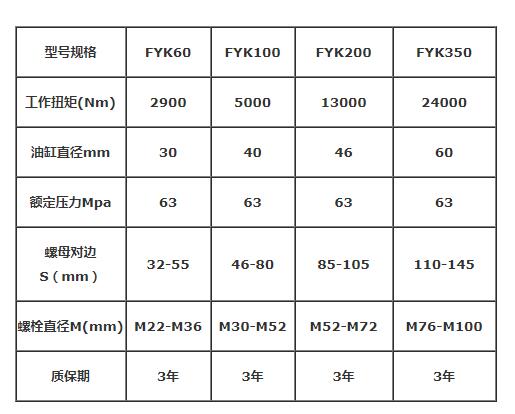

中空液压扳手技术参数:
Technical parameters of hollow hydraulic wrench:
FYB驱动式液压扳手、液压扭矩扳手、液压力矩扳手构造紧凑,体积小,重量轻,输出扭力大,是螺帽拆卸和螺栓预紧的得力工具。规范四方形驱动轴,配合不同规格套筒,合适多种场所应用,比较大限度的采用高强度轻金属,一体成型动力头,进步强度及寿命。较大的扭矩/重量比,双作用,高速,转角大,效率高, 360度旋转软管接头使在狭小的空间内运用便当,绝不会呈现机构卡死, 扭矩反复精度高达±3%,松开时不需其它工具,存贮箱维护扳手头防止损坏,浸水和纯净,运动部件少,经久耐用,维护便当。目前在法兰装置、汽轮机、隧道拙进机、球磨机、大型锅炉、地脚螺栓衔接预紧等产品装置中得到普遍应用。
FYB driven hydraulic wrench, hydraulic torque wrench and hydraulic torque wrench are compact in structure, small in size, light in weight and large in output torque. They are powerful tools for nut disassembly and bolt pre-tightening. Specification of square drive shaft, with different specifications sleeve, suitable for a variety of places, the maximum use of high-strength light metal, forming power head in one, improve strength and life in an all-round way. Larger torque/weight ratio, double-acting, high speed, large rotation angle, high efficiency, 360 degree rotary hose joint makes it convenient to use in narrow space. It will never show mechanism jamming. Torque repetition accuracy is as high as +3%. No other tools are needed when loosening. Storage tank maintenance wrench prevents damage, immersion and purity, less moving parts, durable and convenient maintenance. At present, it has been widely used in flange devices, steam turbines, tunnel entry machines, ball mills, large boilers, anchor bolt connection pre-tightening and other products.
驱动式液压扳手技术参数:
Technical parameters of driving hydraulic wrench:
NJS大功率液压扳手、液压扭矩扳手:由液压泵和带棘轮式液压扭矩扳手两局部组成。支配液压泵的手柄,液压缸产生推力,经过曲柄系统构成力矩,带动螺母转动一个角度,使扭矩传送到带棘轮安装的内六角套筒上从而传送给螺栓联接,按请求预紧螺栓。液压泵由支配手柄,高压泵、换向阀、油箱、压力表和带快速接头的输油管等组成。带棘轮式液压扳手由高压油口、液压油缸、曲柄、反力杆、棘轮安装、套筒等组成、前者系动力源部件,后者为扭矩执行机构。比拟精确的控制拧紧扭矩的理想工具,普遍应用于水电厂,热电厂,炼油厂,化肥厂,造船厂,钢铁厂,化工厂,石油开采业,设备装置业,采矿业机械设备和设备重要螺栓联接的装置及拆卸维修,能便当快捷地完成您的装拆螺栓任务,同时可有效地保证您所需的扭矩值。
NJS high-power hydraulic wrench, hydraulic torque wrench: by the hydraulic pump and ratchet hydraulic torque wrench two parts. Controlling the handle of the hydraulic pump, the hydraulic cylinder generates thrust. Through the crank system, the moment is formed, which drives the nut to rotate at an angle, so that the torque is transmitted to the inner hexagonal sleeve with ratchet wheel installation, and then to the bolt connection, and the bolt is pre-tightened as required. Hydraulic pump is composed of control handle, high pressure pump, reversing valve, oil tank, pressure gauge and oil pipeline with quick joint. The hydraulic wrench with ratchet is composed of high pressure oil nozzle, hydraulic cylinder, crank, reaction rod, ratchet installation, sleeve, etc. The former is power source component, the latter is torque actuator. Comparing with the ideal tool to control tightening torque accurately, it is widely used in hydropower plants, thermal power plants, refineries, fertilizer plants, shipyards, iron and steel plants, chemical plants, petroleum mining industry, equipment installation, mining machinery equipment and equipment important bolt connection devices and disassembly maintenance, can easily and quickly complete your task of bolt assembly and disassembly, while effectively guaranteeing what you need. Torque value.
特性:
Characteristic:
(1)经过液压系统压力表可以准确、牢靠的控制预紧力矩。
(1) Pressure gauge through the hydraulic system can accurately and reliably control the pre-tightening moment.
(2)进步螺纹联接钢度,降低螺栓疲倦断裂的风险性。
(2) Improve the steel of thread connection and reduce the risk of fatigue fracture of bolts.
(3)保证了普遍采用高强度螺栓联接的牢靠性,以利减轻重量和节约空间。
(3) The reliability of high strength bolt connection is guaranteed in order to reduce weight and save space.
(4)运用范围广、顺应强,可用于螺栓及内六角螺钉的预紧。
(4) It can be used for pre-tightening of bolts and internal hexagonal bolts.
(5)操作简单,运用便当,经济平安。
(5) Simple operation, convenient use and economic safety.

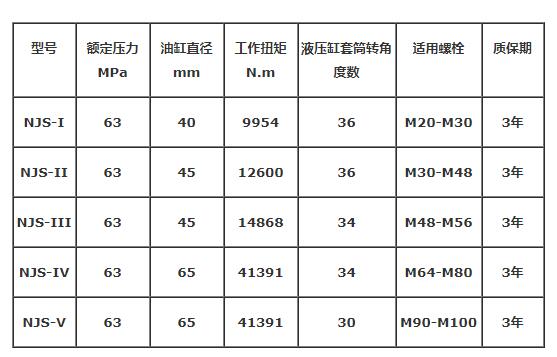

大功率液压扳手技术参数:
Technical parameters of high power hydraulic wrench:
MDS力矩放大扳手/扭力倍增器:是在发电厂电力检测及各工业行业消费检修装置现场,紧固和拆卸大直径螺栓螺母相当艰难,特别在操作人员难以施工的环境中(如设备四周空间较小,无法运用加力杆及各类特种扳手或野外管路,铁路无电源等状况下),综合国内外技术研制胜利力矩放大扳手,可帮您从基本上处理这一难题。主要由主机、反力臂支爪(反作用脚)套筒扳头号组成,操作人员只需施加很小的力,即可得到4.8-96.8倍的输出力矩.配套扭力扳手依据传动比预置好扭力,到达相应的预紧扭矩,能自动发出讯号“嗒”的一声报*,同时伴有明显的手感振动,从而轻盈的完成螺栓螺母的紧固拆卸工作。
MDS Torque Amplifier Wrench/Torque Multiplier: It is very difficult to tighten and disassemble large diameter bolts and nuts on the spot of power plant power inspection and consumer maintenance devices in various industries, especially in the environment where operators are difficult to construct (such as small space around equipment, unable to use afterburner and various special wrenches or field pipelines, no power supply for railway, etc.), and it is the first step to integrate domestic and foreign. Advanced technology to develop a magnifying wrench of victory moment can help you basically deal with this problem. Mainly composed of the main engine and reaction arm claw (reaction foot) socket wrench number, the operator can get 4.8-96.8 times of output torque by exerting very little force. The matching torque wrench presets the torque according to the transmission ratio and reaches the corresponding pre-tightening torque, which can automatically send out a signal "voice"*, accompanied by obvious hand vibration, thus completing the tightening of bolts and nuts lightly. Solid disassembly work.
其特性是采用行星变速机构作为主传动,体积小,重量轻,由于变速比大,输入较小力气就能产生很大的输出扭矩,反作用支脚可360?恣意调整。可互换不同规格的套筒,适用多种大直径螺栓螺母。比较小的工具直径,比较大的力矩输出,产品系列化设计,适用范围更广。
Its characteristic is to use high-efficiency planetary transmission mechanism as the main transmission, small size, light weight, because of the large speed ratio, input a small force can produce a large output torque, reaction support can be arbitrarily adjusted 360? Interchangeable sleeve of different specifications, suitable for a variety of large diameter bolt nuts. Minimum tool diameter, maximum torque output, product serialization design, wider scope of application.
力矩放大扳手技术参数:
Technical parameters of torque amplification wrench:
