桥梁建立专用定扭矩电动扳手--X20J-1运用简介

来源:日期:2019-06-26 发布人:admin

  桥梁建立专用定扭矩电动扳手--X20J-1运用简介

  Special Electric Spanner with Constant Torque for Bridge Construction--Brief Introduction of X20J-1 Application
  随着变革开放的深化开展,基建日益增加,桥梁建立更是必不可少。栓接是桥梁建立的主要衔接方式。栓接必需用大六角高强度螺栓。
  With the deepening of China's reform and opening up, China's infrastructure is increasing day by day, and the establishment of bridges is even more indispensable. Bolting is the main connection mode of bridge construction. Large hexagonal high strength bolts are necessary for bolting.
  大六角高强度螺栓普通是10.9级或12.9级,依据高强度螺栓施工工艺请求,高强螺栓的施工,必需先初紧,再终紧。初紧普通是比较大扭矩值的50%-60%;而终紧必需严厉到达螺栓规则的比较大扭矩值。
  Large hexagonal high strength bolts are usually 10.9 or 12.9 grade. According to the requirements of construction technology of high strength bolts, the construction of high strength bolts must be initially tightened and then finally tightened. Initial tightening is usually 50% - 60% of the maximum torque value, while final tightening must reach the maximum torque value of bolt rules strictly.

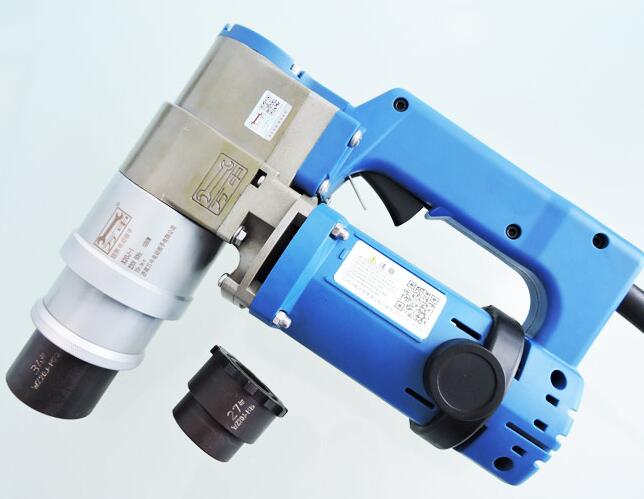

  电动扭矩扳手
  Electric Torque Spanner
  大六角高强度螺栓施工,初紧能够选择手动力矩扳手、定扭矩电动扳手,而终紧必需选择运用前田定扭矩电动扳手。
  In the construction of large hexagonal high strength bolts, the initial tightening can choose the hand power moment wrench and the fixed torque electric wrench, while the final tightening must choose the front field constant torque electric wrench.
  桥梁建立选用螺栓普通是M24和M30大六角高强螺栓,其中M24比较大扭矩值普通是860Nm(比较大扭矩值依据摩擦系数不同,而不同),M30比较大扭矩值普通是1700Nm(比较大扭矩值依据摩擦系数不同,而不同)
  The bolts used in bridge construction are usually M24 and M30 large hexagonal high strength bolts. The maximum torque of M24 is 860Nm (the maximum torque is different according to the friction coefficient), and that of M30 is 1700Nm (the maximum torque is different according to the friction coefficient).
  初紧时,需求选定扭矩电动扳手,设置初紧扭矩值,开端打螺栓,紧固几秒钟后,电动扳手中止紧固,抽出套筒即可。
  In the initial tightening, it is necessary to select the torque electric wrench, set the initial tightening torque value, start bolting, tighten for a few seconds, then stop the tightening of the electric wrench and pull out the sleeve.
  终紧时,需求定扭矩电动扳手,也是先设置扭矩值,到螺栓的比较大扭矩值。紧固几秒后,电动扳手中止紧固,抽出即可。
  When the final tightening, the fixed torque electric wrench is required. It is also the first time to set the torque value to the maximum torque value of the bolt. After a few seconds of tightening, the electric wrench stops tightening and pulls out.
  初紧能够选择普通定扭矩电动扳手,而终紧时,由于扭矩大、并且请求误差小,精度请求高,所以必需选择定扭矩电动扳手。电动扭矩扳手
  The initial tightening can select the ordinary fixed torque electric wrench, while the final tightening, because of the large torque, small request error and high precision request, it is necessary to choose the fixed torque electric wrench. Electric Torque Spanner
  X20J-1电动定扭矩扳手运用阐明
  Application of X20J-1 Electric Fixed Torque Spanner
  运用办法:
  Methods of application:
  ①先把刻度调到所需的扭矩值,把扳手套筒套住螺栓。
  Firstly, adjust the calibration to the required torque value, and cover the wrench barrel with the bolt.
  ②扣动开关,开端工作。
  (2) Turn on the switch and start working.
  ③当扳手到达设定扭矩值时,自动中止紧固,这时抽出扳手完毕工作。
  (3) When the wrench reaches the set torque value, it automatically stops fastening, and then pulls out the wrench to finish the work.
  运用留意:
  Use caution:
  请严厉依照监理请求施工。
  Please strictly follow the supervision request for construction.
  把螺栓合理顺利地插入套筒,不要斜插,以延长套筒寿命。
  Insert the bolt into the sleeve reasonably and smoothly. Do not insert the bolt obliquely to prolong the sleeve life.
  及时改换碳刷,碳刷不能短于6mm,以延长电机寿命。
  Change the carbon brush in time, the carbon brush can not be shorter than 6mm, in order to prolong the life of the motor.
  不要反复紧固。
  Do not tighten repeatedly.
  工作时,不要触摸反力臂。
  When working, do not touch the reaction arm.
  调正反转时,一定要旋转扳机到位。
  When adjusting the inversion, the trigger must be rotated in place.
电动扭矩扳手
  当绿灯亮时,属于正常开机,可正常工作。
  When the green light is on, it belongs to the normal start-up and can work normally.
  当红灯亮时,是非法操作,需断电重新启开工作。
  When the red light is on, it is illegal to operate. It needs power cut to restart work.
  随机装备:
  Random equipment:
  铁箱、防雨插座、螺丝刀、合格证、阐明书(原装)。
  Iron box, rain-proof socket, screwdriver, certificate of qualification, statement (original).
  开箱检查:
  Opening inspection:
  1、先检查机器外观、随机配件的数量。
  1. Check the appearance of the machine and the number of random parts first.
  2、检查机器铭牌、商标钢印。
  2. Inspection of machine nameplates and trademarks.
  3、插电试一下,机器性能能否良好。
  3. Plug-in test to see if the performance of the machine is good.
  然后再去施工现场作业。
  Then go to the construction site.
  改换套筒:
  Change sleeve:
  1、先把定位顶丝松开,取下套筒。
  1. Release the positioning top wire and remove the sleeve.
  2、装上需求的套筒。
  2. Install the required sleeve.
  3、把两个定位螺丝拧紧。
  3. Tighten the two positioning screws.
  改换碳刷:
  Replace the carbon brush:
  ①取下刷盖,顺利装入碳刷
  Remove the brush cover and load the carbon brush smoothly.
  ②压入弹簧。
  (2) Pressure spring.
  ③把黄色金属片合理压入(长对短,短对长)
  (3) Press the yellow metal sheet reasonably (long to short, short to long)
  ④拧紧顶丝(用力不要太大)。
  Tighten the top wire (not too hard).
  定期检查维护:
  Regular inspection and maintenance:
  1、定期检查电源线。
  1. Check the power cord regularly.
  2、定期检查各个部位的螺丝,留意关注电机的声音。
  2. Check the screw of each part regularly and pay attention to the sound of the motor.
  3、保证电机、套筒、机器内部,不要进入杂物。
  3. Make sure that the motor, sleeve and machine do not enter the debris.
  4、紧固螺栓次数五千次,及时检查碳刷和套筒。
  4. Fifty thousand times to fasten bolts, check carbon brushes and sleeves in time.
  5、每次作业终了,应寄存于清洁枯燥处。
  5. At the end of each operation, it should be deposited in a clean and dry place.
  X20J-1定扭矩电动扳手平安事项
  Safety issues of X20J-1 fixed torque electric wrench
  1、严禁在雨中,或湿润环境中作业。
  1. It is strictly forbidden to work in rain or wet environment.
  2、严禁运用非220V电压的电源。
  2. It is strictly forbidden to use non-220V voltage power supply.
  3、远离易燃品、易爆品。
  3. Keep away from inflammables and explosives.
  4、顾惜维护工具、隶属配件。
  4. Take care of maintenance tools and subordinate accessories.
  5、检查及维修时,请先切断电源。
  5. When checking and repairing, please cut off the power supply first.
  6、严禁猛烈撞击机器,或摔碰机器。
  6. It is strictly forbidden to hit the machine violently or to fall on it.
  7、高空作业时,做好平安措施。
  7. Safety measures should be taken when working at high altitude.
  8、机器发烫,或环境高于40度时,中止运用。
  8. When the machine is hot or the environment is above 40 degrees, stop using it.
  9、碳刷短于6mm时,应及时改换碳刷,否则会烧毁电机。
  9. When the carbon brush is less than 6mm, the carbon brush should be replaced in time, otherwise the motor will be burned.
  10、严禁客户本人拆开机器。
  10. It is strictly forbidden for customers to dismantle machines themselves.
  X20J-1定扭矩电动扳手运用留意
  Attention to Application of X20J-1 Fixed Torque Electric Spanner
  1、请认真阅读阐明书并严厉依照正确紧固施工工艺操作。
  1. Please read the instructions carefully and strictly follow the correct tightening construction process.
  2、请务必运用220V的电源。
  2. Be sure to use 220V power supply.
  3、正确衔接电源延长导线。(否则会产生电压降,使扭矩降低、电机有效转速降低,使电机发热使转子漆包线短路)
  3. Connect the power supply to extend the conductor correctly. (Otherwise, there will be a voltage drop, which will reduce the torque, reduce the effective speed of the motor, and shorten the enameled wire of the rotor by heating the motor.)
  延长线面积1.25平方毫米,比较长为20米。
  The extension line has an area of 1.25 square millimeters and a maximum length of 20 meters.
  延长线面积2.0平方毫米,比较长为30米。
  The extension line has an area of 2.0 square millimeters and a maximum length of 30 meters.
  延长线面积3.5平方毫米,比较长为60米。
  The extension line has an area of 3.5 square millimeters and a maximum length of 60 meters.
  4、请运用原装插座、接地线、有漏电维护器设置。(否则会因空气湿润而麻手或有漏电风险)
  4. Please use the original socket, grounding wire and leakage maintainer. (Otherwise, the air will be wet and numb or there is a risk of leakage)
  5、请在开端运用扭矩型电动扳手之前预热几分钟。(否则会使扭矩达不到标定扭矩值)
  5. Please warm up for a few minutes before starting to use the torque type electric wrench. (Otherwise, the torque will not reach the calibrated value)
  6、请不要在电动扳手工作时用手触摸反力臂。
  6. Please do not touch the reaction arm with your hand while the electric wrench is working.
  7、当运用正反转时,请务必把旋转扳机旋转到位。(否则会打坏反正转齿轮)
  7. When using positive and negative rotation, please make sure that the rotary trigger is in place. (Otherwise, the reverse gear will be damaged)
  8、当紧固螺栓时,要从螺栓的小扭矩值开端紧固,不要从螺栓的大扭矩值开端紧固。(否则有可能打坏行星齿轮)
  8. When tightening bolts, tighten them from the small torque value of the bolts, not from the large torque value of the bolts. (Otherwise, planetary gears may be damaged)
  9、当扳手拧紧螺栓中止时,请不要再次开机拧紧。(否则会冲坏行星齿轮,这样扭矩更会增大)
  9. When the wrench tightens the bolt to stop, please do not turn on and tighten again. (Otherwise, the planetary gears will be damaged and the torque will be increased.)
  10、请及时改换碳刷,运用原厂碳刷。不能短于6mm(否则会因碳刷弹簧压力不够而产生电火花烧毁转子)
  10. Please change the carbon brush in time and use the original carbon brush. It should not be less than 6mm (otherwise the rotor will be burned by electric spark due to insufficient spring pressure of carbon brush)
  11、绿灯亮,正常。红灯亮,表示输入错误,请重新启动。
  11. The green light is on. It's normal. Red light, indicating input error, please restart.
  12、请坚持工作场所干净。(否则灰尘进入机器,伤害齿轮)
  12. Please keep the workplace clean. (Otherwise, dust enters the machine and damages the gears)
  13、留意适宜的工作服装,远离人群、留意平安,轻拿轻放,高空坚持身体均衡,制止雨天作业。
  13. Pay attention to appropriate work clothes, stay away from the crowd, pay attention to safety, handle lightly, maintain a balanced body at high altitude, and stop working in rainy days.
  14、请运用原厂隶属品、配件,制止改换或运用非本机配件。
  14. Please use the original affiliated products and accessories to prevent the replacement or use of non-native accessories.
  15、正确维护电动扳手的机体、外壳、电线及配件,请勿自行翻开;如需维修,请与厂家销售代表联络。
  15. Maintain properly the body, housing, wires and accessories of the electric wrench. Do not open them by yourself. If you need maintenance, please contact the sales representative of the manufacturer.
