扭剪扳手与电动扳手的区别在于什么?

来源:日期:2021-08-11 发布人:admin

扭剪扳手主要是终紧扭剪型高强螺栓的,它的目的就是把扭剪型高强螺栓的梅花头打断即可。工作时将扳手头对准螺栓头,扣动开关即可开始工作,几秒后,螺栓梅花头将被扭断,然后抽出扳手扣动扳机将梅花头弹出,即结束工作。

The torsion shear wrench is mainly used to finally tighten the torsion shear high-strength bolt. Its purpose is to break the plum blossom head of the torsion shear high-strength bolt. When working, align the wrench head with the bolt head, pull the switch to start working. After a few seconds, the bolt plum blossom head will be broken, then pull out the wrench and pull the trigger to pop up the plum blossom head, that is, end the work.
电动扳手主要应用于钢结构安装行业,专门安装钢结构高强螺栓,高强度螺栓是用来连接钢结构接点的,通常是用螺栓群的方式出现。高强螺栓可分为扭剪型和大六角型两种,国标扭剪型高强螺栓为M16、M20、M22、M24四种,非国标的M27、M30两种;国标大六角高强螺栓为M16、M20、M22、M24、M27、M30等几种。一般的对于高强螺栓的紧固都要先初紧再终紧,而且每步都需要有严格的扭矩要求。大六角高强螺栓的初紧和终紧都必须使用定扭矩扳手.故各种电动扳手就是为各种紧固需要而来的。使用效果
Electric wrenches are mainly used in the steel structure installation industry to install high-strength bolts of steel structure. High strength bolts are used to connect steel structure joints, usually in the form of bolt groups. High strength bolts can be divided into torsion shear type and large hexagon type. There are four kinds of national standard torsion shear type high strength bolts: M16, M20, M22 and M24, and two kinds of non-national standard M27 and M30; The national standard large hexagon high-strength bolts are M16, M20, M22, M24, M27, M30, etc. Generally, the tightening of high-strength bolts should be first tightened and then finally tightened, and strict torque requirements are required in each step. The fixed torque wrench must be used for the initial tightening and final tightening of large hexagon high-strength bolts. Therefore, various electric wrenches are designed for various tightening needs. Use effect
扭剪扳手
冲击电动扳手主要是初紧螺栓的,它的使用很简单,就是对准螺栓扳动电源开关就行。电动扭剪扳手主要是终紧扭剪型高强螺栓的,它的使用就是对准螺栓扳动电源开关,直到把扭剪型
The impact electric wrench is mainly used to initially tighten the bolt. Its use is very simple. Just aim at the bolt and pull the power switch. The electric torsional shear wrench is mainly used to finally tighten the torsional shear type high-strength bolt. Its use is to align the bolt and pull the power switch until the torsional shear type
高强螺栓的梅花头打断为止。电动定扭矩扳手既可初紧又可终紧,它的使用是先调节扭矩,再紧固螺栓。电动转角扳手主要也属于定扭矩扳手的一种,它的使用是先调节旋转度数,再紧固螺栓。电动角向扳手是一种专门紧固钢架夹角部位螺栓的电动扳手,它的使用和电动扭剪扳手原理一样。性能
Until the plum blossom head of high-strength bolt is broken. The electric constant torque wrench can be tightened initially and finally. Its use is to adjust the torque first and then tighten the bolts. Electric angle wrench mainly belongs to a kind of constant torque wrench. Its use is to adjust the rotation degree first, and then tighten the bolt. The electric angle wrench is an electric wrench specially used to fasten the bolts at the included angle of the steel frame. Its use principle is the same as that of the electric torsion shear wrench. performance

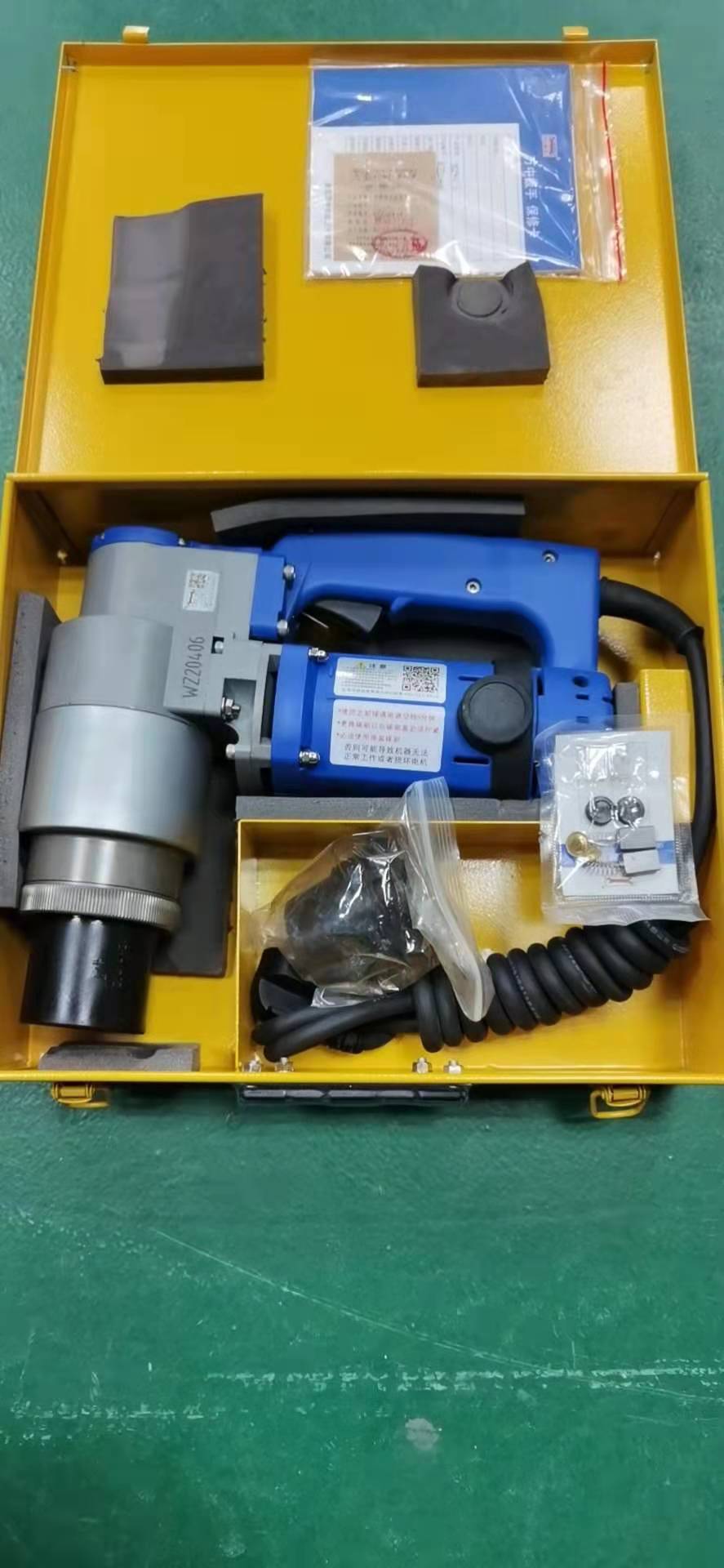

电动扭剪扳手顾名思义就是扭剪梅花头螺栓拧紧作业的必备工具,帮助您装、拆螺拴、螺母,同时能比较准确地控制拧紧扭矩。利用螺栓定扭矩,当扳手达到一定扭矩时即可剪断螺栓的梅花头部分,其扭矩精度和轴向拉力是靠螺栓的定扭矩V
As the name suggests, the electric torsion shear wrench is a necessary tool for the tightening operation of torsion shear Torx head bolts. It helps you install and remove bolts and nuts, and can accurately control the tightening torque at the same time. The fixed torque of the bolt is used. When the wrench reaches a certain torque, the plum blossom head of the bolt can be cut off. Its torque accuracy and axial tension depend on the fixed torque V of the bolt
型切口来保证的。拆装扭力矩大、比手工更保险可靠。方便、美观、实用、便于随车携带。广泛用于钢结构桥梁、厂房、发电设备等设施的施工作业。
Type incision to ensure. The disassembly torque is large, which is safer and more reliable than manual. Convenient, beautiful, practical and easy to carry with the vehicle. It is widely used in the construction of steel structure bridges, plants, power generation equipment and other facilities.
