大扭矩电动扳手使用说明,会操作了吗?

来源:日期:2019-05-31 发布人:admin

  大扭矩电动扳手使用说明

  Instructions for Use of Large Torque Electric Spanner功能:拧紧大六角高强度螺栓。
  Function: Tighten large hexagonal high strength bolts.
  用法:
  Usage:
  (1)先将比例尺调整到所需扭矩值,将扳手套入螺母套内。
  (1) First adjust the scale to the required torque value, and put the wrench glove into the nut sleeve.
  按下开关,开始工作。
  Press the switch and start working.
  (3)当扳手达到设定扭矩值时,自动停止拧紧,然后拔出扳手结束工作。
  (3) When the wrench reaches the set torque value, it automatically stops tightening and pulls out the wrench to finish the work.
  注:紧固螺栓时,一定要按电源开关。不要间歇地点击它,然后再点击一次。
  Note: When fastening the bolt, the power switch must be pressed. Don't hit it intermittently, and then click it again.
  使用注意:
  Use note:
  请严格按照扭矩要求操作。
  Please operate strictly according to the requirements of torque.
  将螺栓合理、平稳地插入套筒内,不要倾斜,以延长套筒的使用寿命。
  Insert the bolt into the sleeve reasonably and smoothly without tilting, so as to prolong the service life of the sleeve.
  操作时扳手应垂直于钢板,不得倾斜。(否则会增加扭矩误差)及时更换碳刷。碳刷不得短于6mm,以延长电机寿命。
  The wrench should be perpendicular to the steel plate and not inclined during operation. (Otherwise, it will increase the torque error) Replace the carbon brush in time. Carbon brushes should not be less than 6 mm to extend the life of the motor.
  不要重复紧固,不要重复紧固!(拧紧力矩增大)工作时请勿触摸反力臂。
  Do not repeat the fastening, do not repeat the fastening! (tightening moment increases) Do not touch the reaction arm when working.
  一定要旋转扳机,直到扳机到位(否则会损坏齿轮)。
  Be sure to rotate the trigger until the trigger is in place (otherwise the gear will be damaged).
  当绿灯亮时,正常启动,可以正常工作。
  When the green light is on, it can start normally and work normally.
  当红灯亮时,是非法操作,需要断电,重新启动工作。
  When the red light is on, it is illegal to operate and need power off to restart the work.
  配备:铁箱、防雨插座、螺丝刀、合格证、说明书(原件)。
  Equipped with: iron box, rain-proof socket, screwdriver, certificate, instruction (original).
  性能特点:
  Performance characteristics:
  (4)第四代产品,比较新型号,高速电机,大功率,高速,运行速度快,方便,质量好,寿命长。
  (4) Fourth generation products, the latest models, high-speed motors, high power, high speed, fast operation, safety and convenience, good quality, long life.
  (2)可调扭矩范围大(2400-6000nm);花键套筒容易更换。
  (2) The adjustable torque range is large (2400-6000 nm); the spline sleeve is easy to replace.
  (3)可正反旋转(可拆卸螺母,可紧固螺母)。
  (3) Positive and negative rotation (removable nuts, fastening nuts).
  其他说明:
  Other notes:
  (1)该模型转矩范围内的任意转矩值(2400-6000nm)均可达到。
  (1) The arbitrary torque values (2400-6000 nm) in the range of the model's torque can be achieved.
  但是,如果螺栓扭矩值小于2400Nm,或者螺栓扭矩值大于6000Nm,则不要拧紧机器。
  However, if the bolt torque value is less than 2400Nm, or the bolt torque value is greater than 6000Nm, do not tighten the machine.
  如果是拆卸螺母,则可以操作。但是你可以稍微增加扭矩。
  If the nut is disassembled, it can be operated. But you can slightly increase the torque.
  但在拆卸过程中,请仔细听电机的声音。如有异常声音,请立即停止工作。
  But in the process of disassembly, please listen carefully to the sound of the motor. If there is any abnormal sound, please stop working immediately.
  (3)用小螺丝刀调整控制器上的扭矩旋钮,用大螺丝刀更换碳刷。
  (3) Adjust the torque knob on the controller with a small screwdriver and replace the carbon brush with a large screwdriver.
  (4) GNRS602E转速为2.5 RPM,为固定转速,不调速。
  (4) The speed of GNRS 602E is 2.5 RPM, which is fixed and not regulated.
  GNRS602E重11.4公斤,净重,不是毛重。
  GNRS 602E weighs 11.4 kg, net weight, not gross weight.
  6电压是230V~,是浮动电压,220V ~ 230V之间可以,但电压不能波动太大,尽量与调压器匹配。
  Voltage 6 is 230V ~, which is a floating voltage. It can be between 220V and 230V, but the voltage can not fluctuate too much. It should be matched with the regulator as far as possible.
  7功率为额定功率1800W(2s/3s)。
  The rated power is 1800W (2s/3s).
  开箱检查:

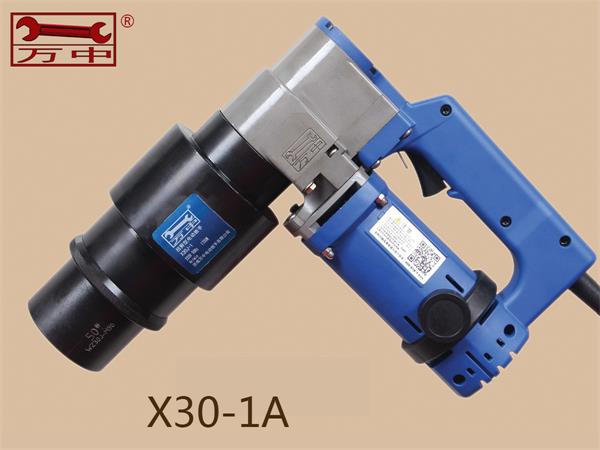

                          电动扭矩扳手
  Opening inspection:
  1. 检查机器的外观和随机配件的数量。
  1. First check the appearance of the machine and the number of random parts.
  2、检查机器铭牌、商标钢印。
  2. Inspection of machine nameplates and trademarks.
  3、插拔试验后,机器性能良好。
  3. After the plug-in test, the machine has good performance.
  然后去工地工作。
  Then go to work on the site.
  取代袖:
  Replace sleeve:
  1. 松开橡胶圈,取下铁销,取下套管。
  1. Loosen the rubber ring, remove the iron pin and remove the casing.
  2. 根据需要安装花键套筒。
  2. Install spline sleeve as required.
  3.安装铁销和橡皮筋。
  3. Install iron pins and rubber bands.
  更换碳刷:
  Replace the carbon brush:
  (1)取下电刷盖,放入碳刷。
  (1) Remove the brush cover and put the carbon brush in.
  压入弹簧。
  Press in the spring.
  (长对短,短对长)
  (Long to short, short to long)
  上弦(不要用力太大)。
  Upper chord (don't exert too much force).
  定期检查保养:
  Regular inspection and maintenance:
  1. 定期检查电源线。
  1. Check the power cord regularly.
  2. 定期检查各部位螺丝,注意电机的声音。
  2. Check the screw in every part regularly and pay attention to the sound of the motor.
  3、确保电机、套筒、机器内部,不进杂物。
  3. Ensure that motor, sleeve and machine are free from impurities.
  4. 拧紧螺栓5000次,及时检查炭刷和套管。
  4. Tighten bolts 5000 times, check carbon brush and casing in time.
  5. 每次手术后,将其存放在干净干燥的地方。
  5. After each operation, store it in a clean and dry place.
  1. 严禁在下雨或潮湿的环境中工作。
  1. It is strictly forbidden to work in rainy or humid environment.
  2. 严禁使用非220v电压供电。
  2. It is strictly forbidden to use non-220v voltage for power supply.
  3.远离易燃易爆物品。
  3. Keep away from inflammable and explosive materials.
  4. 爱护防护工具及配件。
  4. Care for protective tools and accessories.
  5. 在检修时请切断电源。
  5. Cut off the power supply during the overhaul.
  6. 严禁将机器猛烈撞击或摔落。
  6. It is strictly forbidden to hit or fall the machine violently.
  7. 高空作业时应采取措施。
  7. Safety measures should be taken when working at high altitude.
  8、机器发热,或环境温度高于40度,停止使用。
  8. When the machine is heated or the ambient temperature is above 40 degrees, stop using.
  9. 当炭刷短于6mm时,应及时更换炭刷,否则电机会烧坏。
  9. When the carbon brush is less than 6mm, the carbon brush should be replaced in time, otherwise the motor will burn out.
  10. 请勿直接拖动电源线。
  10. Do not drag the power cord directly.
  11. 严禁“微调”。
  11. It is strictly forbidden to "fine-tune".
  12. 请妥善保管好配件。
  12. Please take good care of the accessories.
  13. 请保持工作场所清洁。(不要让灰尘、铁屑等杂物进入机器,损坏电机或齿轮)13. Keep the workplace clean. (Do not let dust, iron scraps and other debris into the machine, damage the motor or gear)
